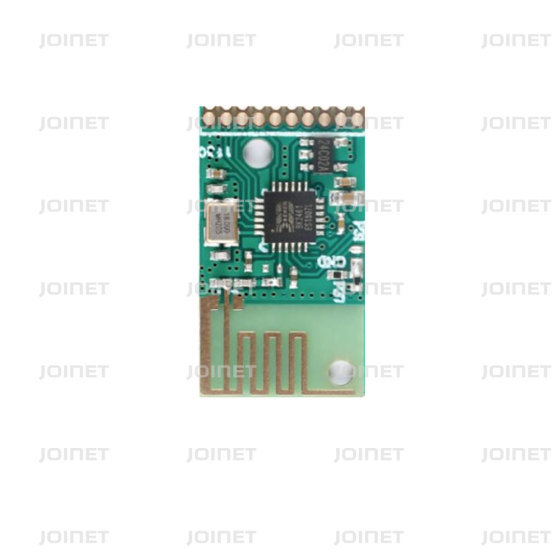

2.4G RF 6-channel switch quantity transmission module

The 2.4G RF serial data transmission module is a series of low-power, high bandwidth wireless digital communication module products that operate in the 2.4GHz global ISM frequency band. Has the following characteristics: 1. UART serial port transparent transmission, providing communication protocol, with a communication distance of up to 120 meters in open scenarios. 2. Integrated transceiver, half duplex communication, multi-channel, strong anti-interference ability. 3. The working frequency can be set, and multiple modules can be frequency division multiplexed without interfering with each other. 4. Communication protocol conversion and RF transceiver switching are automatically completed without user intervention, making it simple and easy to use. 5. The serial communication rate is 1.2KBPS-38.4KBPS, and users can configure it through serial commands.

Product characteristics
Model: ZN-M-RF24-001	Main chip: BK2461
Single pin setting module working mode (transparent transmission and configuration mode)	Communication mechanism with ACK for sending and receiving
Trigger deep sleep mode through external voltage levels	Serial port speed, communication frequency, and address software can be configured

Core functional application areas
Smoke stove linkage	Security monitoring
Smart home appliance	Sensor applications
Wireless toys	Wireless applications
Access Control System	Children searching
medical equipment	Attendance System

Specification parameters
1. Operating frequency: 2.4GHz to 2.5GHz	2. Emission current: 90mA@12dBm
3. Power supply mode: 2.0~3.6V	4. Modulation method: FSK
5. Communication distance: 120m	6. RF communication speed: 1Mbps
7. Antenna impedance: 50 Ω	8. Receiver sensitivity: -90dBm
9. Transmission power: software adjustable	10. Receiving working current: 23mA
11. Working temperature range: -20 ℃ -85 ℃
