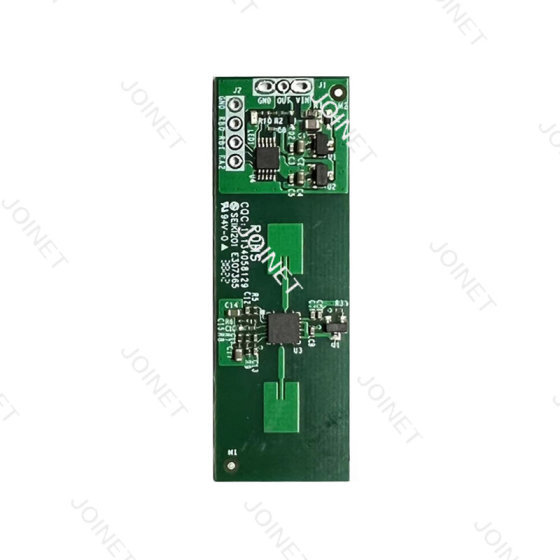

10.525GHz Microwave Radar Module
ZD-PhMW2 is a micro/motion sensing module designed based on X-band radar chips, with a center frequency of 10.525GHz. This module is designed with fixed frequency, directional transmission and reception antennas (1TIR). The module integrates functions such as intermediate frequency demodulation, signal amplification, and digital processing, while opening communication serial ports. It has the ability to set delay and adjust sensing range, making it convenient for customers to adjust parameters independently. It has advantages such as no wall penetration, anti-interference, small size, clutter and high harmonic suppression, high stability and consistency. This product is suitable for embedded concealed design and is not affected by temperature/humidity, oil fume, water mist, etc. It can be widely used in non-contact perception control fields such as local space lighting or advertising machines.
Product Features | |
Chip: XBR816C | Size: 55mm*17.5mm |
Frequency band: 10.525Ghz | Package: 3Pin pin |
Application scope of core functions | |
Smart Building | smart home |
smart socket | pet feeder |
Advertising machine bright screen/proximity sensor | Smart lamps |
Specifications | |
1. Based on the principle of Doppler radar, it can realize the detection of motion and micro-movement | 2. Wall or embedded installation, perception angle: 110°±10° |
3. The product is positioned as a short-distance swipe or proximity-sensing scene application | 4. Low power output, richer application scenarios |
5. Detection distance: 0.1 - 0.2m close-range swipe (distance adjustment by software) 1 - 2m proximity sensing (distance adjustment by software) | 6. High and low level output |
7. Low power output, richer application scenarios | 8. Onboard PCB antenna |
9. Working voltage: 3.3-12V (5V recommended) | 10. Working environment temperature: -20 - + 60°C |
11. Working humidity: 10 - 95% |
