Bluetooth module

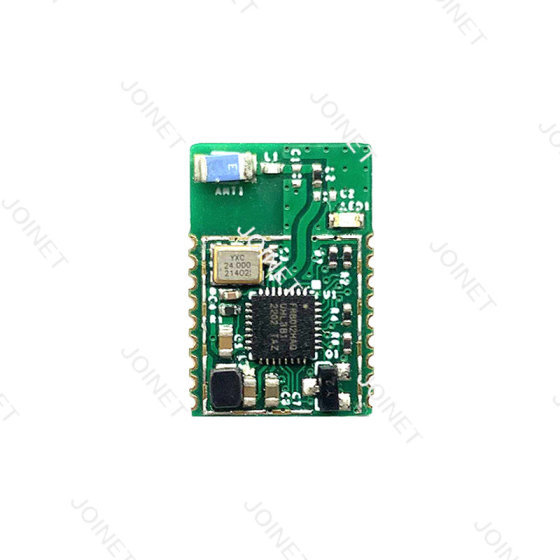

The ZD-FrB3 series low-power Bluetooth module is a low-power and high-performance module developed by Zhongneng IoT Technology for IoT applications that supports Bluetooth 5.1 protocol. The module is packaged with stamp holes and a PCB antenna, with a compact overall size. The ZD-FrB3 has rich peripheral interfaces and is flexible to use, reducing a lot of preliminary research and development work, and easily achieving Bluetooth application development.

Product Features
Chip: Fr8012	Size: 11.8mm17.7mm2mm
Communication protocol: BLE 5.1	Package: stamp hole

Core Function Application Area
General bluetooth products	Power product application
Universal home application

Specifications
1. Single-mode Bluetooth 5.1	2. Support host mode, slave mode, master-slave mode
3. GAP, GATT, L2CAP, SMP Bluetooth low energy profile	4. Voltage: 1.8V~4.3V
5. Maximum output power: 10dBm	6. RX sensitivity: -97dBm typical
7. Ultra-low circuit power consumption: 1) Standby state: 6.1uA 2) Shutdown state: 2.7uA
