Bluetooth module

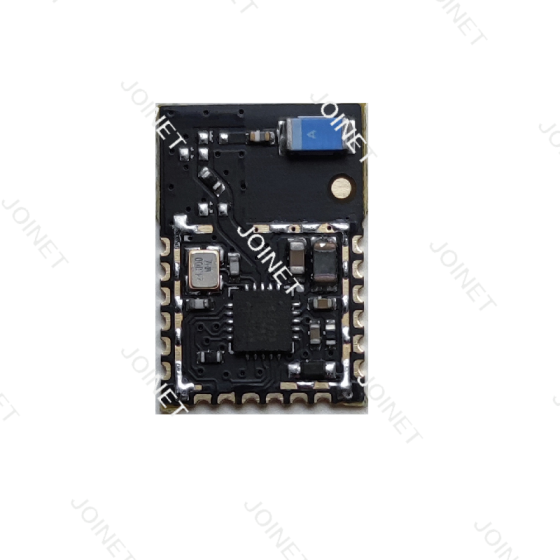

The ZD-FrB1 series low-power Bluetooth module is a low-power and high-performance module developed by Guangdong Zhongneng IoT Technology Co., Ltd. for IoT applications that supports Bluetooth 5.1 protocol. It mainly consists of highly integrated Bluetooth chips and a small number of peripheral circuits. The module is packaged with stamp holes, and thanks to the use of high-performance ceramics, the overall size of the module is small. ZD-FrB1 has rich peripheral interfaces and is flexible to use, reducing a lot of preliminary research and development work, and easily achieving Bluetooth application development.

Product Features
Chip: Fr8003	Size: 10.5mm15mm2.5mm
Communication protocol: BLE 5.1	Package: stamp hole

Core functions
outdoor travel	smart home
Smart Appliances	smart lighting

Specifications
1. Single-mode Bluetooth 5.1	2. Support host mode, slave mode, master-slave mode
3. Voltage: 1.8V~4.3V	4. Maximum output power: 10dBm
5. RX sensitivity: -97dBm typical	6. Ultra-low circuit power consumption: 1) Standby state: <5uA 2) Power off state: <1uA
7. Programmable ARM Cortex-M3 processor, support customer in-depth development
