Bluetooth module

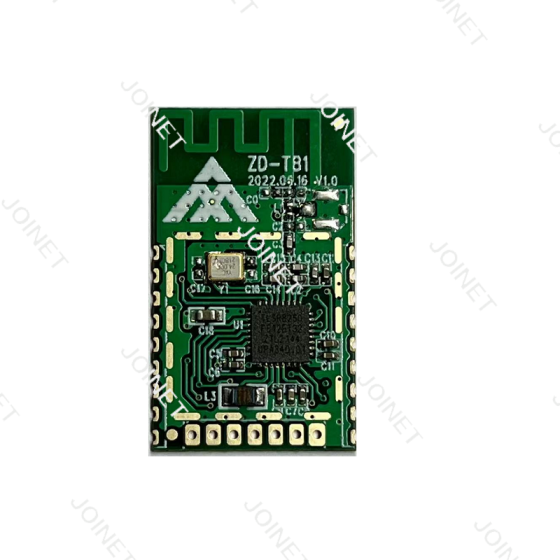

ZD-TB1 is a low-power embedded Bluetooth module. It mainly consists of a highly integrated Bluetooth chip TLSR8250F512ET32 and a small number of peripheral circuits. It has a built-in Bluetooth network communication protocol stack and rich library functions, and a low-power 32-bit MCU, which can also serve as an application processor.

Product Features
Chip: TLSR8250	Size: 17.7mm*30mm
Communication protocol: BLE 4.2/5.0	Package: stamp hole/pin

Core functions
Smart Appliances	Smart kitchen appliances
smart home	smart socket
smart lighting

Specifications
1. Built-in low-power 32-bit MCU, which can double as an application processor	2. The main frequency supports 48 MHz
3. Working voltage: 1.8V-3.6V, between 1.8V and 2.7V, the module can be started, but the optimal RF performance cannot be guaranteed; between 2.8V-3.6V, the overall performance of the module is normal	4. Bluetooth Low Energy 4.2/5.0
5. RF data rate up to 2Mbps	6.TX transmit power: +10dBm
7. RX receiving sensitivity: -94.5dBm@1Mbps	8. Embedded hardware AES encryption
9. With onboard PCB antenna, the antenna gain is 2.5dBi	10. Working temperature: -40℃ to +85℃
